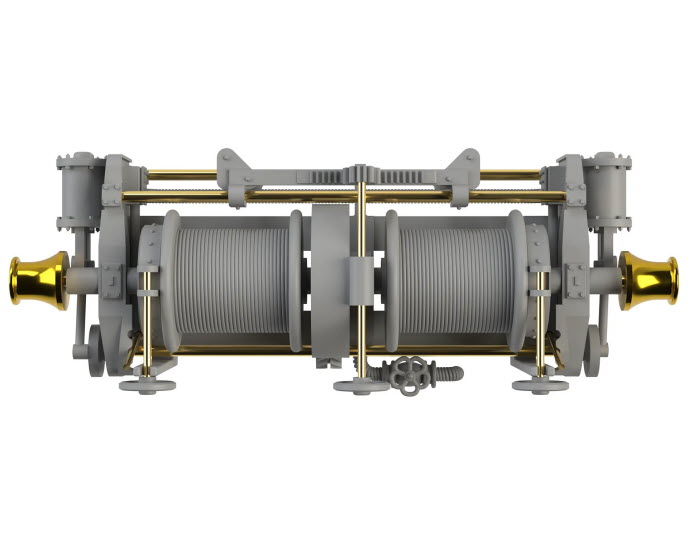

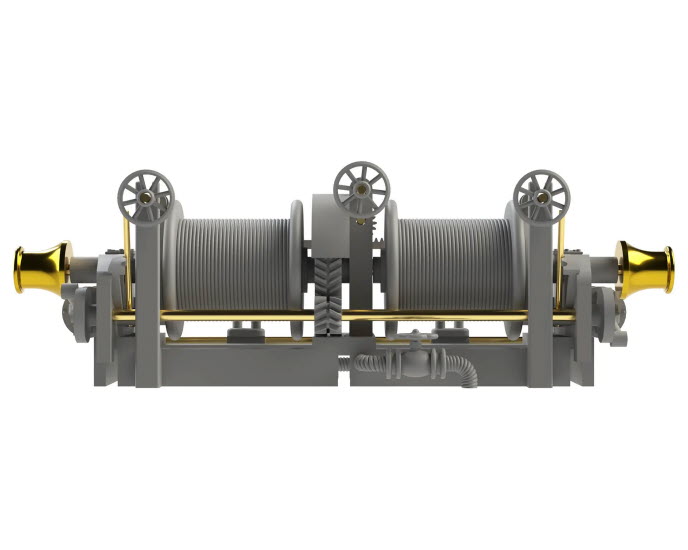

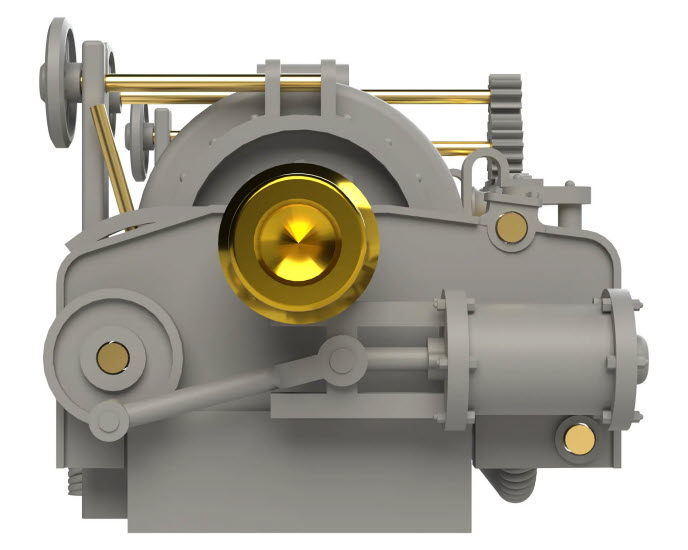

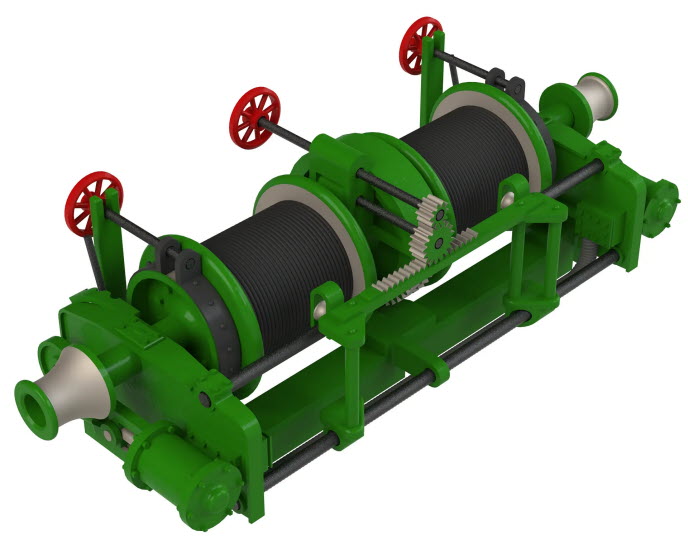

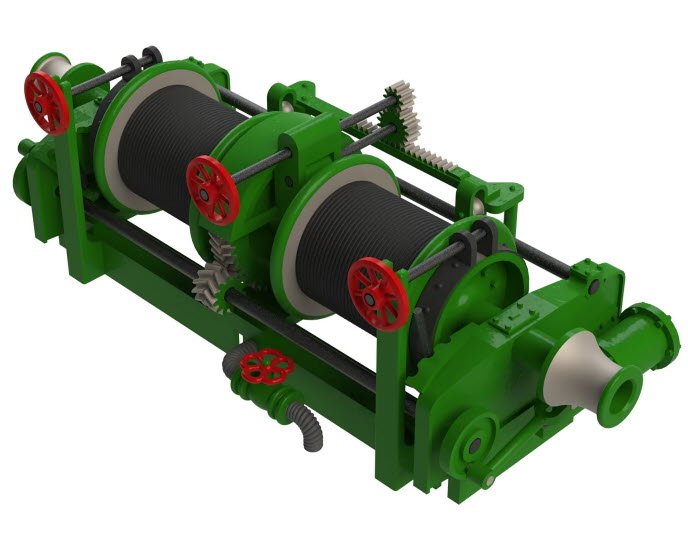

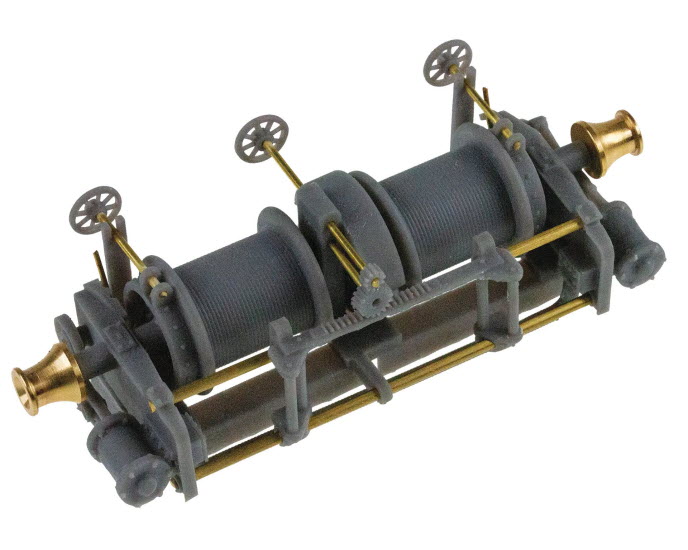

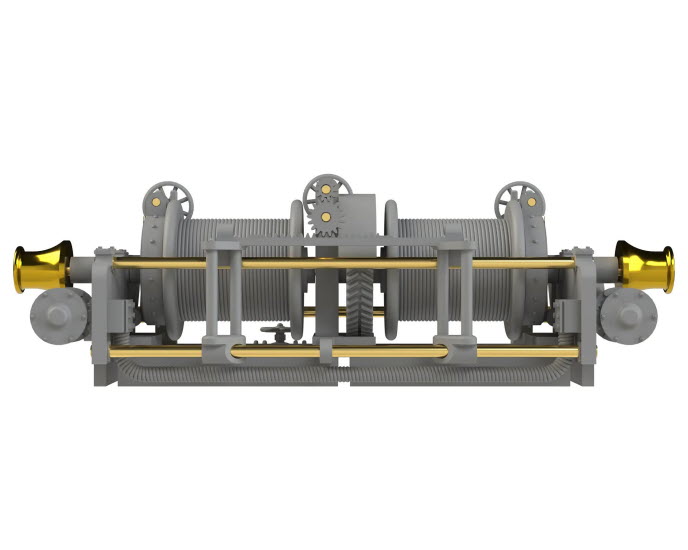

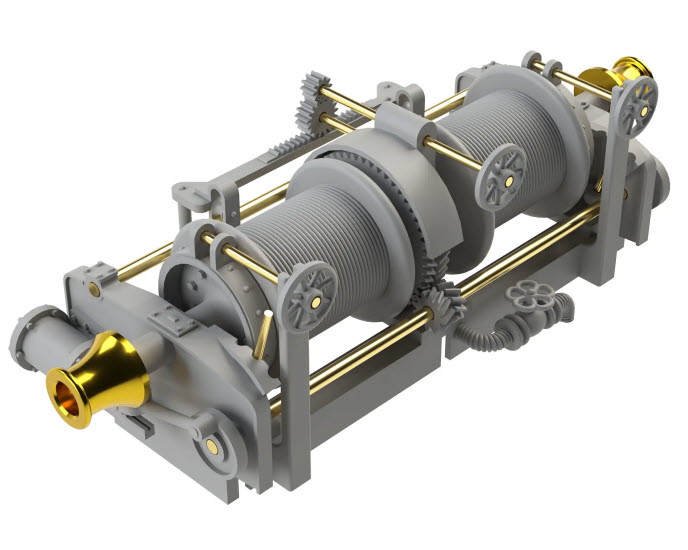

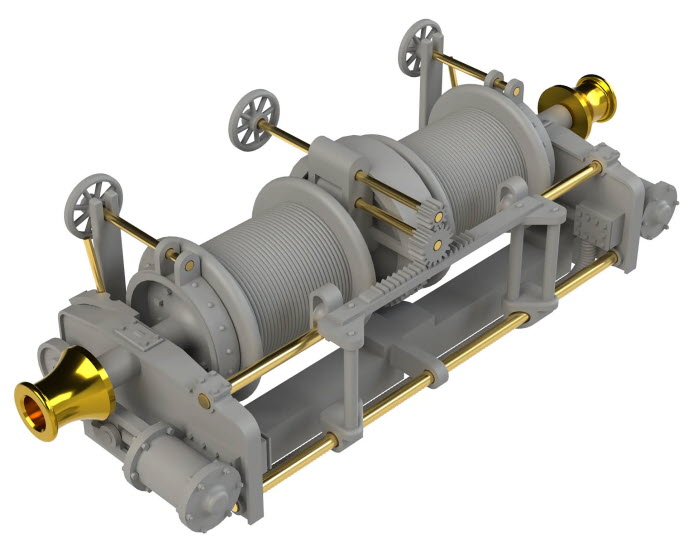

As well as a pair of turned brass warping drums, for auxiliary pulling/lifting power, this trawl winch features twin coil drums with independent forward/reverse and brake controls, all of which have allowed simultaneous control of both the port and starboard warp lines. The roller fairlead assembly hangs on the upper shaft with a simulated roller bearing and is secured in place by the lower shaft; the assembly even features gear stops, which would limit sideways movement, preventing lead ropes being able to pass beyond the ends of the drum coils.

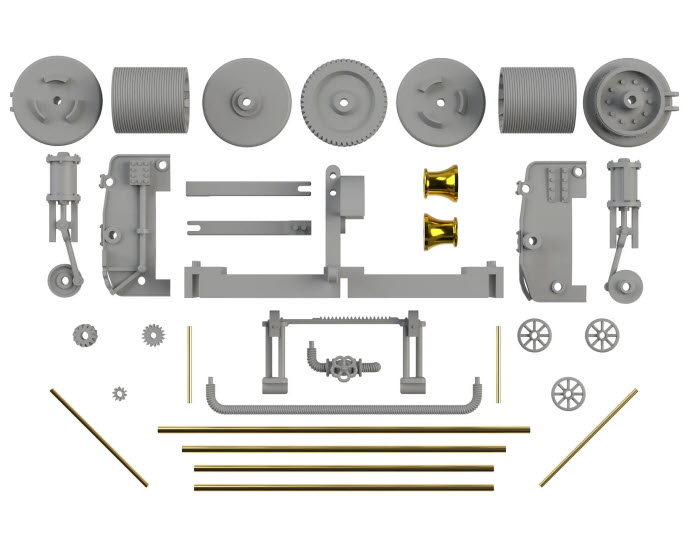

Includes:
Resin Drum Ends x2

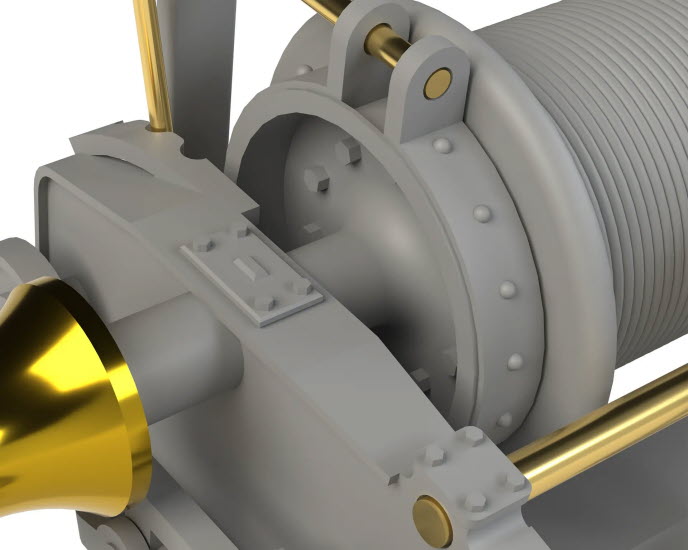

Resin Drum Brakes x2
Resin Drum Coils x2
Resin LH Frame Side x1
Resin RH Frame Side x1
Resin Frame Base x1
Resin Insulation Wrapped Steam Pipe x1

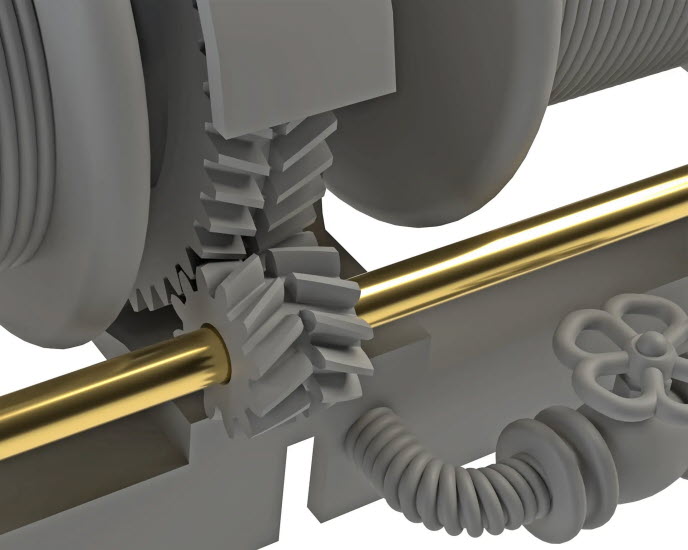

Resin Herringbone Drive Gear x1
Turned Brass Warping Drums x2
Resin Roller Fairlead Assembly x1
Resin Herringbone Pinion Gear x1
Resin Steam Cylinders x2
Resin Idle Gear x1
Resin Round Control Handles x3
Resin Pinion Gear x1
Resin Brake Handle Supports x2
Resin Steam Inlet Valve x1
Various Brass Rods as Necessary
A4 Step by Step Instruction Manual
